With the continuous development of society and the continuous improvement of industrial production technology, most of this benefits from the development of mechanization. As a very important role in the production and processing process, the role of conveyor belt can not be underestimated. Conveyor belts are widely used, and there are many kinds. Turning conveyor belt is a very popular one. What kind of belt is the conveyor belt of the turning machine?

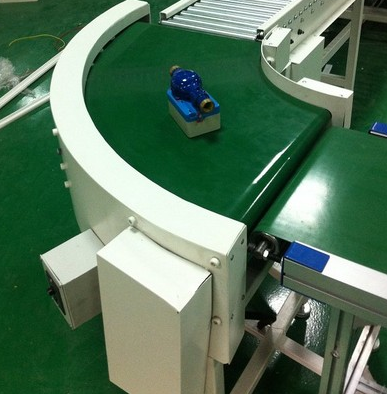

Literally, the conveyor belt of the turning machine is a conveyor belt that can stably transport goods at the turn. This is to reasonably transform the fuselage according to the curved line that the goods will pass through, and then accurately command the conveyor belt to change direction according to the wishes of the staff.

1、 Turning mode turning mode

There are two ways to turn the conveyor belt: mandatory turning and natural turning. The former is characterized by not changing the main parts of the original machine and only adding a corner at the turning place, which is suitable for large turning. The latter is to find a way to make the conveyor belt bend naturally, with simple structure, easy maintenance and suitable for small turns.

2、 Design of conveyor belt of turning machine

1. Line design.

2. Determine the parameters of the idler group.

3. Accurately calculate the tension at each point of the conveyor belt.

4. Specify the relevant restrictions on turning.

5. Dynamic analysis.

6. Prepare various maintenance measures in advance.

3、 Function of conveyor belt of turning machine

It is very convenient to use the conveyor belt of the turning machine, which can be transported horizontally and obliquely, and the direction is flexible. Therefore, it is widely used in industrial enterprises. For example, the transportation of beverage bottles, drugs, aluminum cans, cosmetics, food, etc. It can also be developed and applied to elevator, vegetable cleaning machine and meat food transportation. The tensile force borne by the turning conveyor belt is generally no more than 20m long.

The above is an introduction to the relevant knowledge of the conveyor belt of the turning machine. I believe you also have a certain understanding. Welcome new and old customers to consult and customize their samples and drawings.
